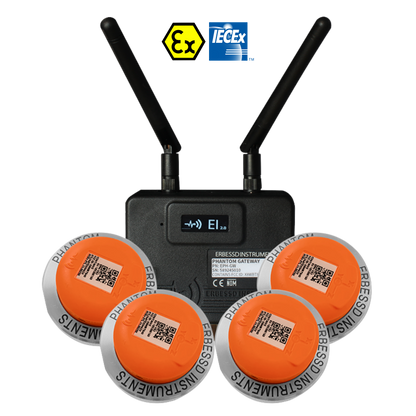

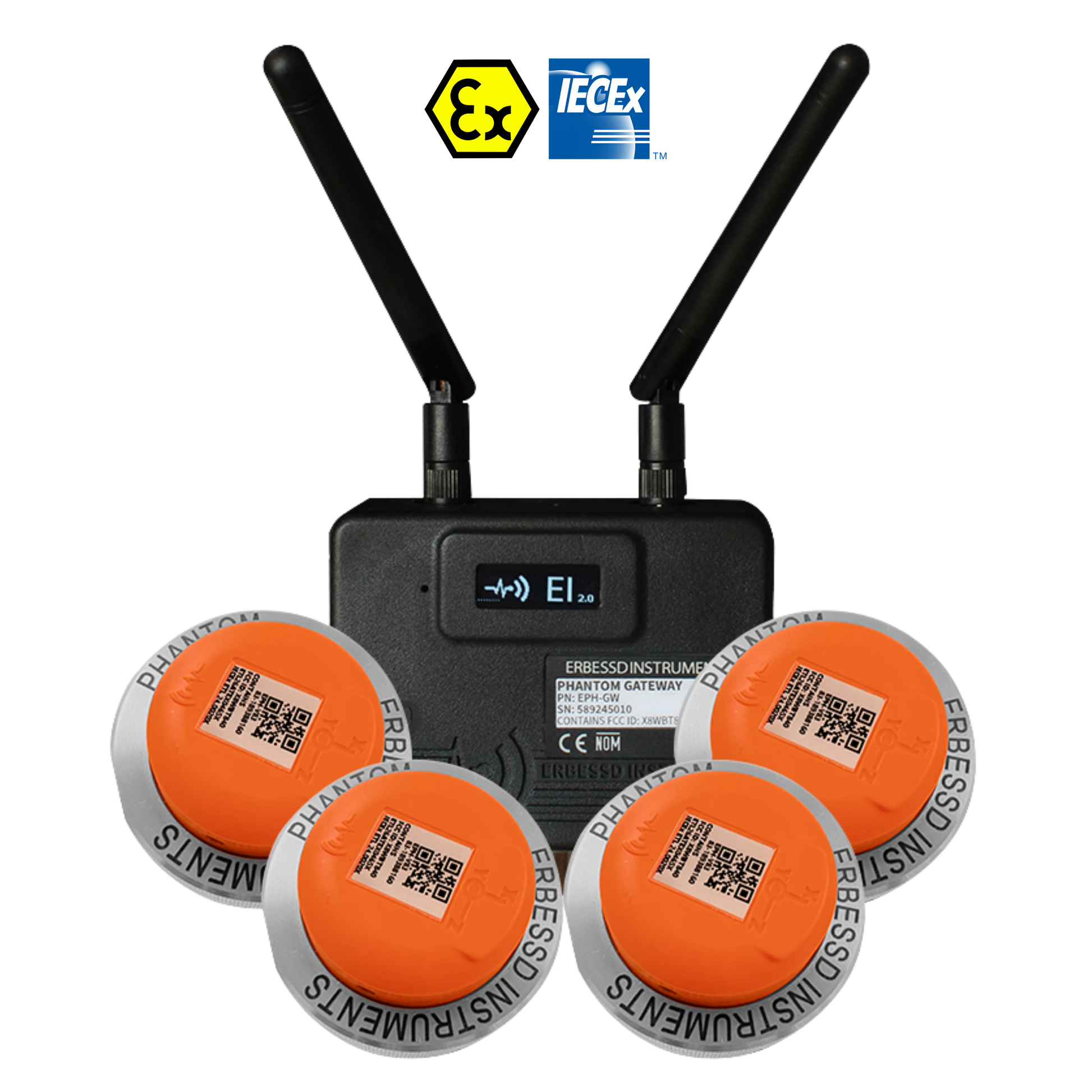

Wireless High Range Ultra Low Noise Triaxial Accelerometer for Condition Monitoring Sensors - Phantom Expert Gen 4 (4 Kit)

The Phantom Expert Gen 4 is an advanced Wireless Vibration Monitoring Sensor designed for semi-permanent installation in industrial environments. Using MEMS-type accelerometers, it simultaneously records vibration FFT data on X, Y, and Z axes for accurate and reliable condition monitoring.

Designed for demanding industrial applications, the Gen 4 features integrated vibration and temperature analysis, configurable velocity and acceleration alarm intervals, and Modbus TCP/IP, OPC-UA and MQTT compatibility for seamless system integration. Its IP67-rated enclosure provides protection against dust and liquids, along with ATEX and IECEX certifications, while the replaceable battery allows for extended operational life and simplified maintenance.

Key Features

• MEMS type accelerometers
• Simultaneous FFT recording on X, Y, and Z axes
• Frequency range: 0–8 kHz on all axes
• Configurable collection interval
• Vibration & temperature integration
• Spectral noise: 44 µg/√Hz
• Replaceable battery CR2477
• Modbus TCP/IP, OPC-UA, MQTT compatibility
• IP67 protection against dust and liquids
• ATEX & IECEX Certfied

• • ATEX: II 3G Exic IIC T5 Gc & II 3D ExiC IIIC T85°C Dc
  • IECEX: Exic lIC T5 Gc & Exic IIC T85°C Dc

This Kit Includes

• 1 Gateway 2
• 4 Phantom Expert Gen 4 Sensors
