Wireless High Range Triaxial Accelerometer for Condition Monitoring Sensors - Phantom Expert Gen 3 (12 Kit)

Phantom Expert Gen 3 (High Range) is a Wireless Vibration Sensor (EPH-V11E) designed for semi-permanent mounting. It records vibration FFT from 3 axes simultaneously X, Y and Z. In addition, it includes a battery that can last to measure up to 100,000 recordings that can be changed at the end of its useful life.

Also, our Wireless Vibration Sensor wake up on high vibration levels in order to send data and alarms. As an additional value, our Wireless Vibration Sensor have a built-in integrator, as a result, it can internally calculate velocity parameters for alarms. This way, RMS values ​​can be sent as well with a selectable periodicity.

• MEMS type accelerometers
• Configurable Alarm interval
• Replaceable battery
• Frequency range: 10 KHz (x,y) and 5.1 KHz (z)
• Spectral noise: 630 µg/√Hz
• Speed + Vibration Integration
• IP67 Design for protection from liquid and dust
• Modbus compatibility

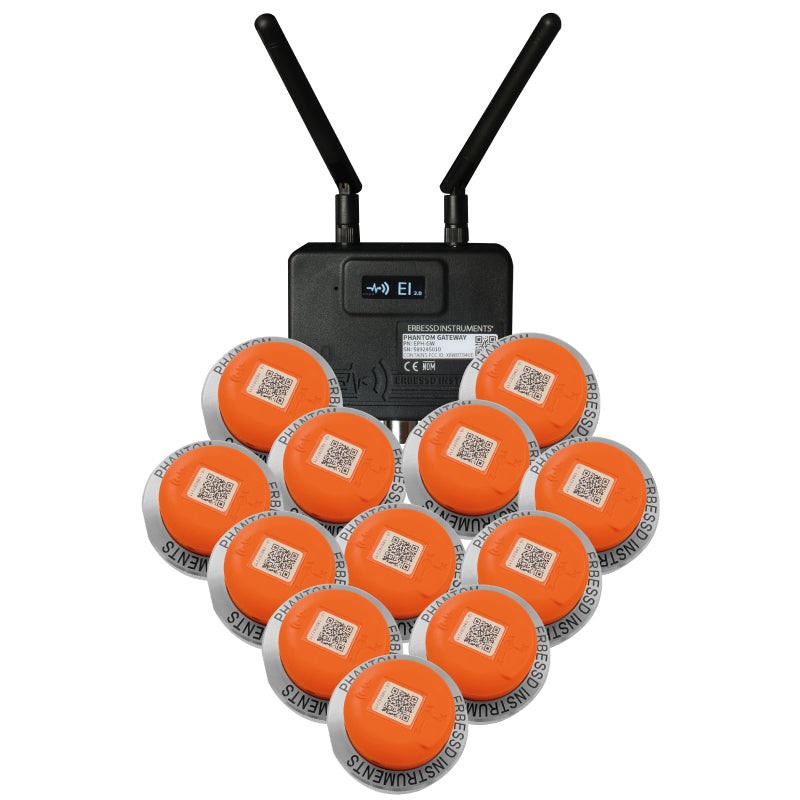

This kit includes:

• 1 Gateway 2
• 12 Phantom Expert Gen 3 EPH-V11E
